Antennas in use, antenna designs

Hustler 5 -BTV antenna

160 meter dipole with a w2du balun

160 meter dipole with a w2du balun

Hustler 5 Band antenna set up for 75m, 40m, 20m, 15m, and 10m.  It needs more ground radials to operate better.  More later of the final results

160 meter dipole with a w2du balun

160 meter dipole with a w2du balun

160 meter dipole with a w2du balun

One very long antenna. I built for a 160 contest back in the early 2000's


Cobra antenna

160 meter dipole with a w2du balun

MFJ multiband antenna using hamsticks

I purchased this several years ago. During Field Day 2020 after numerous setbacks in setting up, I pulled it out of the plastic bag and threw this on a 30 foot pole and into the trees. I found that my lack of faith was unfounded. It has performed very well.

MFJ multiband antenna using hamsticks

MFJ multiband antenna using hamsticks

MFJ multiband antenna using hamsticks

MFJ 2100 spider center with 75m, 40m, 20m, and 10m elements

G5RV and Cushcraft R3

MFJ multiband antenna using hamsticks

G5RV and Cushcraft R3

For years I have used a G5RV and a Cushcraft R3, Both worked very well over their 20 years of my use. The R3 was used when I purchased it but in very good shape. The G5RV was one I picked up from another ham who had been less than pleased with its performance. A couple tweaks and strung over ledge, it has worked well and has only come apart twice after very heavy wet snow/thick icing. Ten minutes with some solder and a small torch and I was back on the air.

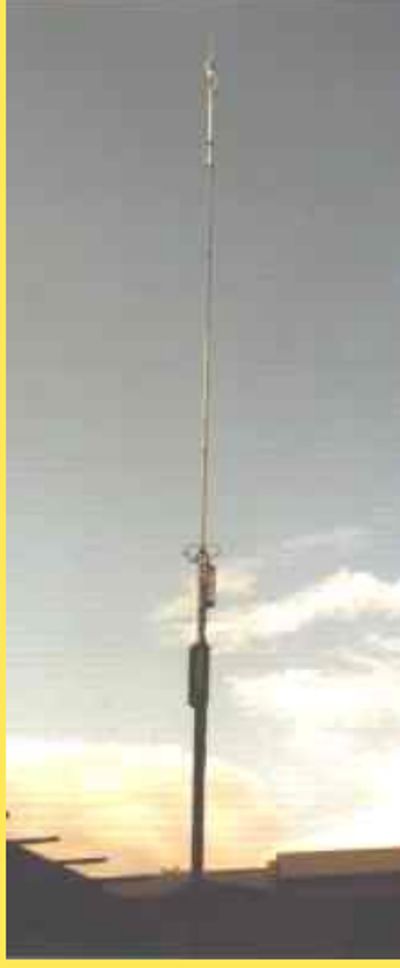

The hustler modified 4btv

Hustler 5BTv

This antenna started its life as a used Four band Hustler antenna.


A 75 meter section and coil have been added. With parts from DX Engineering, this antenna now has a much needed ground plane, a tolt over base.


I am experimenting with a 1:1 W2DU balun at the base of the antenna. I had significant trouble tuning the antenna with coaxal coils.


 The wires for the ground plane are a work in progress. For this antenna I have discovered more is definitely better.

Links to More

Hustler 4BTV at DX Engineering: https://www.dxengineering.com/parts/hsr-4btvwhat


Parts at Dx Engineering:  https://www.dxengineering.com/parts/dxe-aok-80m


https://www.dxengineering.com/parts/dxe-aokb-17m

Tilt Base

https://www.dxengineering.com/parts/dxe-tb-3p

Direct coax feed adapter (strength and protection from the elements)

https://www.dxengineering.com/parts/dxe-aok-dcf



Find out more

160 Meter Dipole

160 Meter Dipole

In the early 2000's, I wanted to operate on the 160M band (1800 to 1975 kHz.)   The G5RV required a whole lot more tuner than even the 989 could provide and the antenna still wasn't resonant at these frequencies. Most of the energy was being gobbled up at the antenna tuner trying to match the G5RV I had.


Originally my first antenna was literaly short pieces of wire anywhere from a foot long to five or six feet long that had been thrown away by an electrician on multiple jobs in our company.  Over a period of months I managed to splice and solder almost enough for a dipole. It was a little bit short but still tunable and much better than using the G5RV. So I tried my first 160 m contest. About ten people could hear me. At 4:1 or 5:1 there was still too much loss.  So after the ice and snow snapped the antenna in a half a dozen places., I decide to build a new one.



After a trip to HD and a couple spools of 500' of thhn wire, I sat down and built the second dipole. It has a 24 inch of PVC in the middle separating the 2 1/4 wave sections. I did this so that I could tie the antenna to tower and the antenna wires wouldn't contact my 40 foot tower. This antenna when new had a match of 1:2:1 according to the meters and antenna analyzer I was using. It worked very well using <100 Watts.


I attempted to reconfigure it into a loop with 4 1/4 wave sections. However this project didn't work any better than the dipole due to height limitations, being over ledge, and  one leg being too close to the power lines.

HF Antenna design informationfrom the web

A practical approach to HF and VHF antennas, plus antenna Myths and Mysteries By Terry Graves, K7FE

http://www.arrl.org/files/media/Group/antenna_myths.pdfIf

A slide show presentation on antenna design and myths

An Optimized 20 Meter Vertical Collinear Antenna by Gary rondeau

Optimizing a 20 Meter vertical - https://squashpractice.com/2017/08/27/an-optimized-20-meter-vertical-collinear-antenna/

How Does an Inductor or Loading Coil Work?

 Some thoughts and knowledge by W8JI Charles Rauch at his site:  https://www.w8ji.com/

Section on loading coils:

   https://www.w8ji.com/mobile_and_loaded_antenna.htm


The Case of the Curly Collinear L. B. Cebik, W4RNL (SK) & More

This is a page I found at http://on5au.be/content/a10/vhf/cc.html website.  ON5AU Marcel De Canck's website has much more on antennas, modeling, design, etc...


Also for lower HF antennas:  http://on5au.be/content/lha.html

His Website:  http://on5au.be/


Some sources of Antenna components

Wolf River Coils LLC:  https://www.wolfrivercoils.com/index.html


Amateur Radio Supplies : https://www.amateurradiosupplies.com/unadilla-traps-sale-s/100.htm


The Wireman :https://thewireman.com/


M Squared : https://www.m2inc.com/categories/amateur/antenna-parts/diy-parts-make-your-own.html


DX Engineering:  https://www.dxengineering.com/


Ham Radio Outlet Salem NH:   https://www.hamradio.com/locations.cfm?storeid=9  My favorite candy store for radio gear. Before Covid 19, It was one of my favorite haunts when in Salem NH. (20 minute walk from Canobee Park and a chance to play with new "stuff". Obtuse thought: I don't remember leaving there without sending money  ;-)


Ham Radio Outlet - Search: https://www.hamradio.com/search_advanced.cfm


The above list will grow

As time goes on I will add new material

N1YIS Wayne


Antenna Research Sites

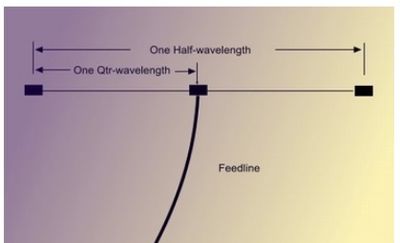

Dipole antennas

Trap dipole design http://degood.org/coaxtrap/


Inverted dipole  https://zs6bne.wordpress.com/2017/06/08/radar-from-dipoles-to-end-feds-to-multiband-end-feds/14-inverted-vee-antenna/


Multi element monobander




Quads, Loops

 Hard core DX site:  http://www.hard-core-dx.com/nordicdx/antenna/loop/loop80m.html



G5RV and related antennas

a


Vertical HF antennas

Mono poles  -

1/2 wave -

ground plane -

Mobile antennas-


Wire yagis

Wire YAGI's and design


Antennas for 20,17,15,12,10

Cushcraft R3 -


A coil calculator From: deepfriedneon.com/tesla_f_calchelix
